Tremoline LN6A Locking Nuts
More Convenience and Durability
DESCRIPTION

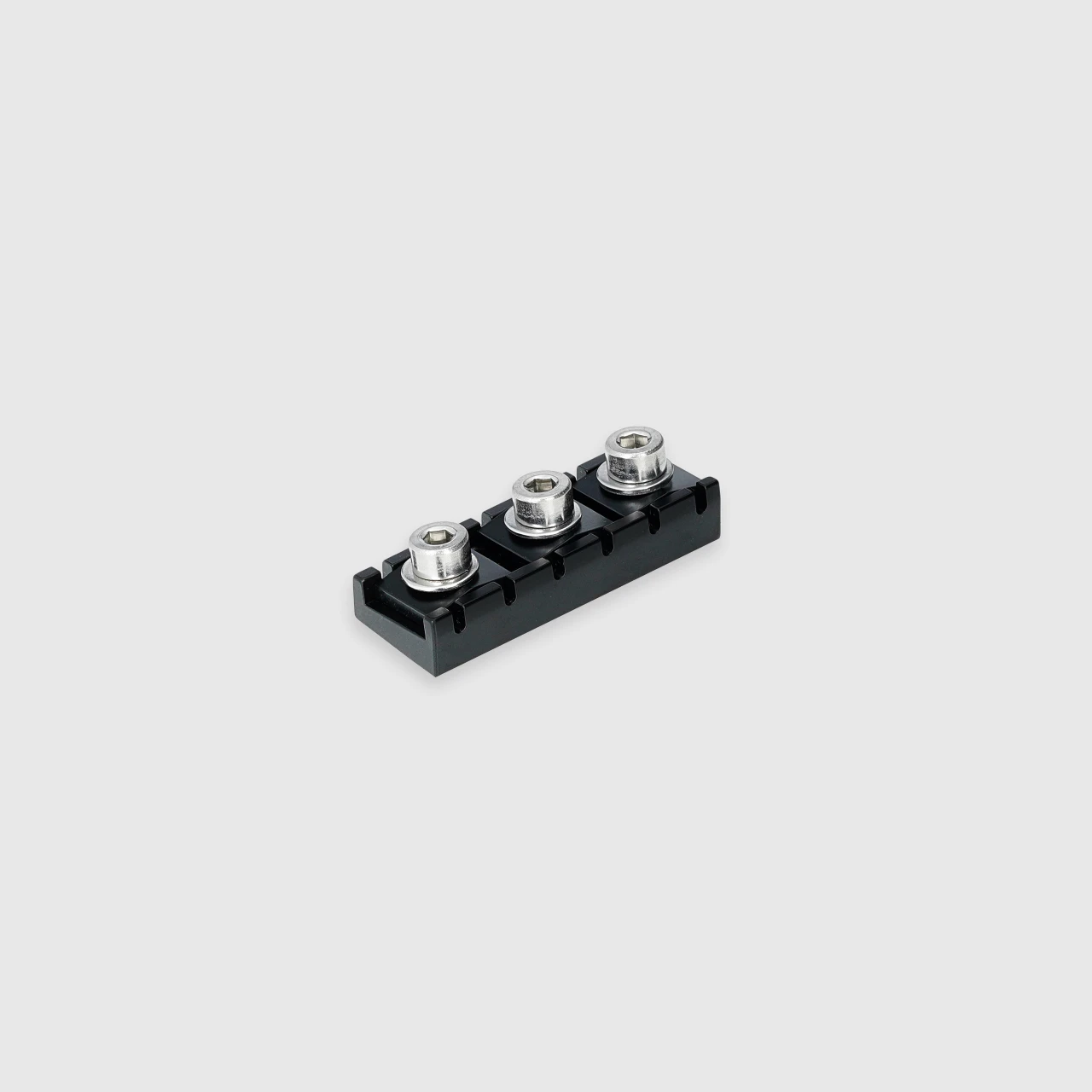

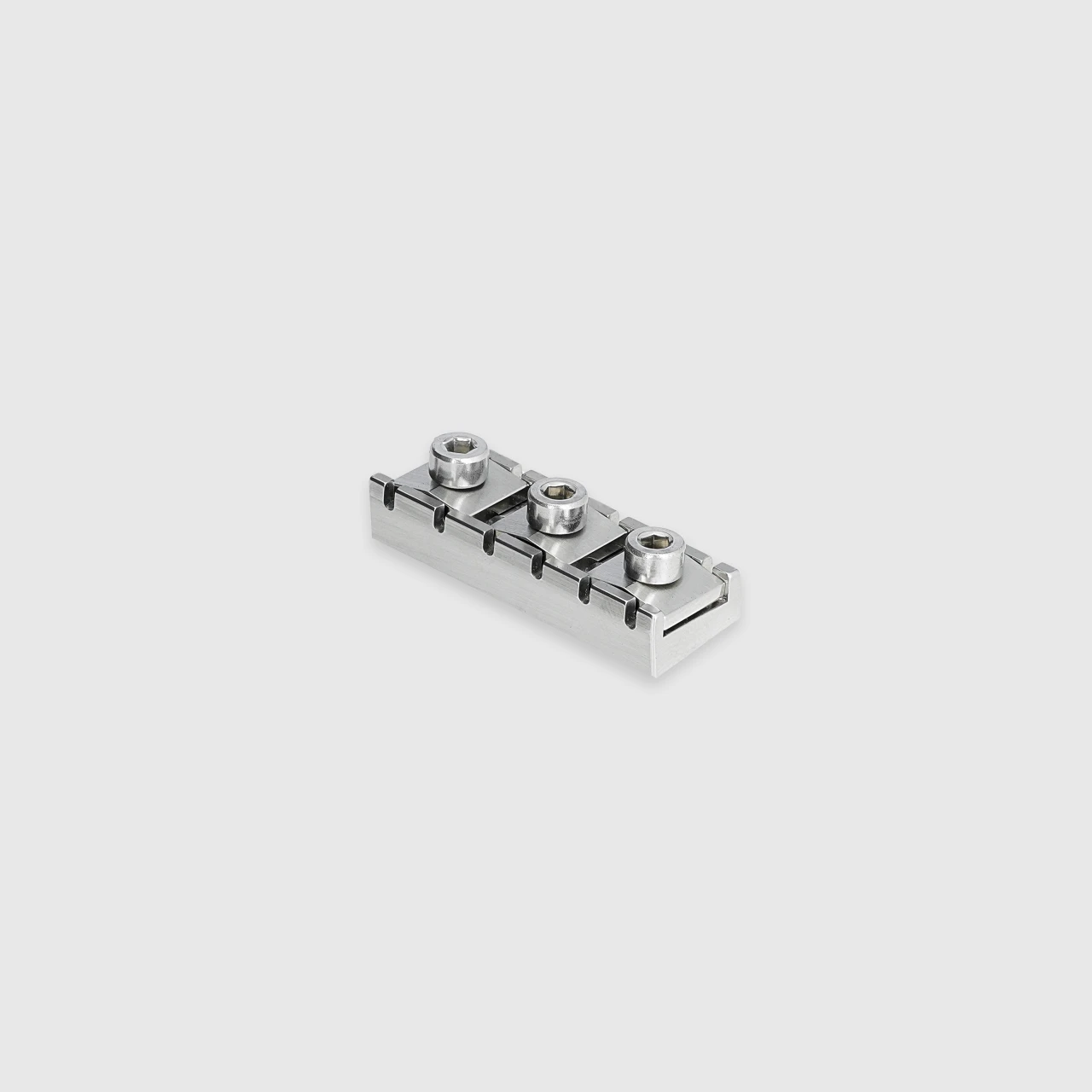

The Tremoline LN6A Locking Nuts are fully functional retrofits of all standard guitar locking nuts described as R3/L3 or R2/L2.
There are four types of Nuts - right handed - R3 (width-42.8mm), R2 (width-41.4mm) and left handed - L3 (width-42.8mm) and L2 (width-41.4mm).
LN6A has two fixing options - from above (by two wood screws) and from underneath (by two metric thread screws).
The original inside geometry of the locking nut base leads to the use of the Tremoline LN6A without the need of additional String Retainer Bar in case of tiltback headstock.
The replacement of the ordinary V-shape string slots with thin U-shape slots leads to the lack of need (or minimal need) of fine tuning adjustment.
Also it minimizes the string stress in the locking area under the corners of the Nut Clamps and U-shape slots.
All metal parts of the Tremoline LN6A Locking Nuts are produced only from solid bars, sheets and wires of specially selected STAINLESS STEEL alloys.
All parts are NON-MAGNETIC, which leads to the lack of magnetic interference (unwanted noise).
All parts comply with RoHS 2 (European Directive 2011/65/EU for the Restriction of use of certain Hazardous Substances).
All parts are NON-ALLERGENIC and comply with ISO 10993-10 (European standard for biocompatibility) and are also FDA (U.S. Food and Drug Administration) compliant.
Tremoline LN6A Locking Nuts - Convenience, Durability and Longevity.
TECHNICAL DATA

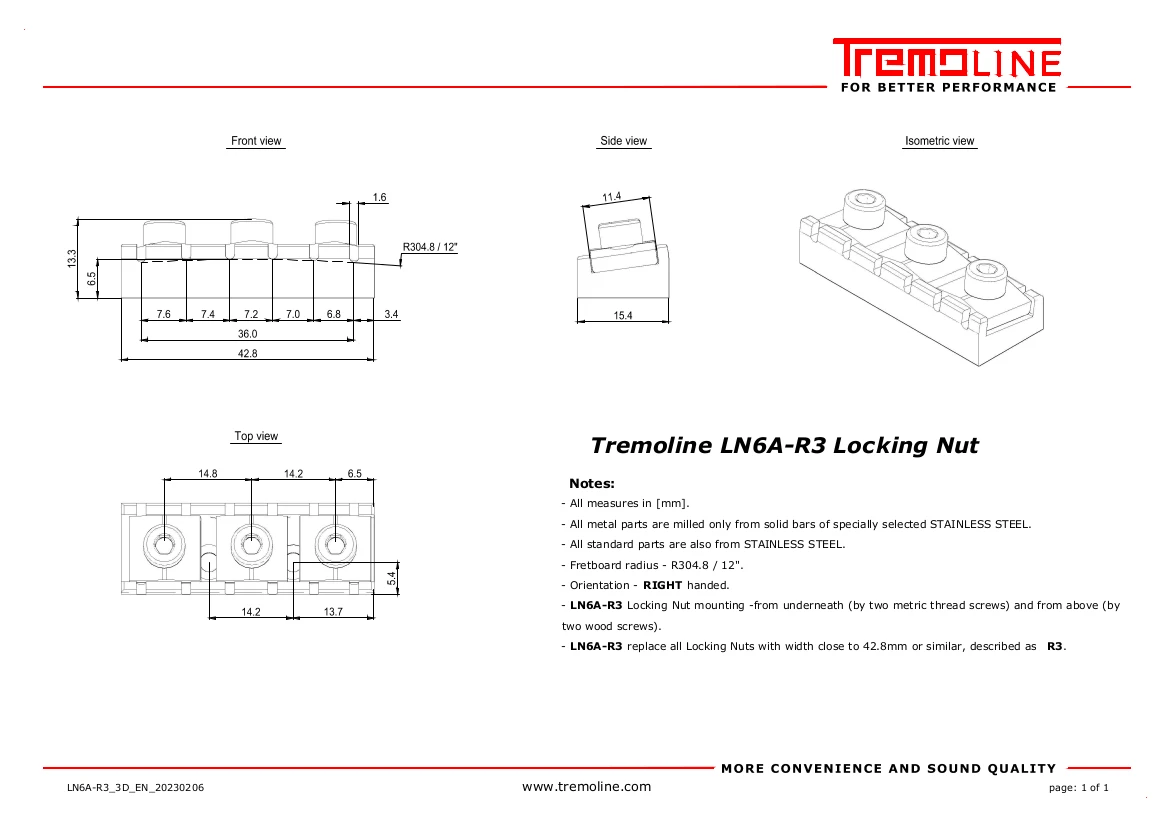

Tremoline LN6A R3 / L3
| Orientation | Right / Left handed |
| Nut Base width | 42.8mm / 1.6875" |
| E-E center width | 36.0mm / 1.4155" |
| String spacing | 6.6mm / 0.2591" |
| Locking Nut radius | 304.8mm / 12.0" |
| Nut Base fixing | from above and underneath |
| Retainer Bar kit | included |

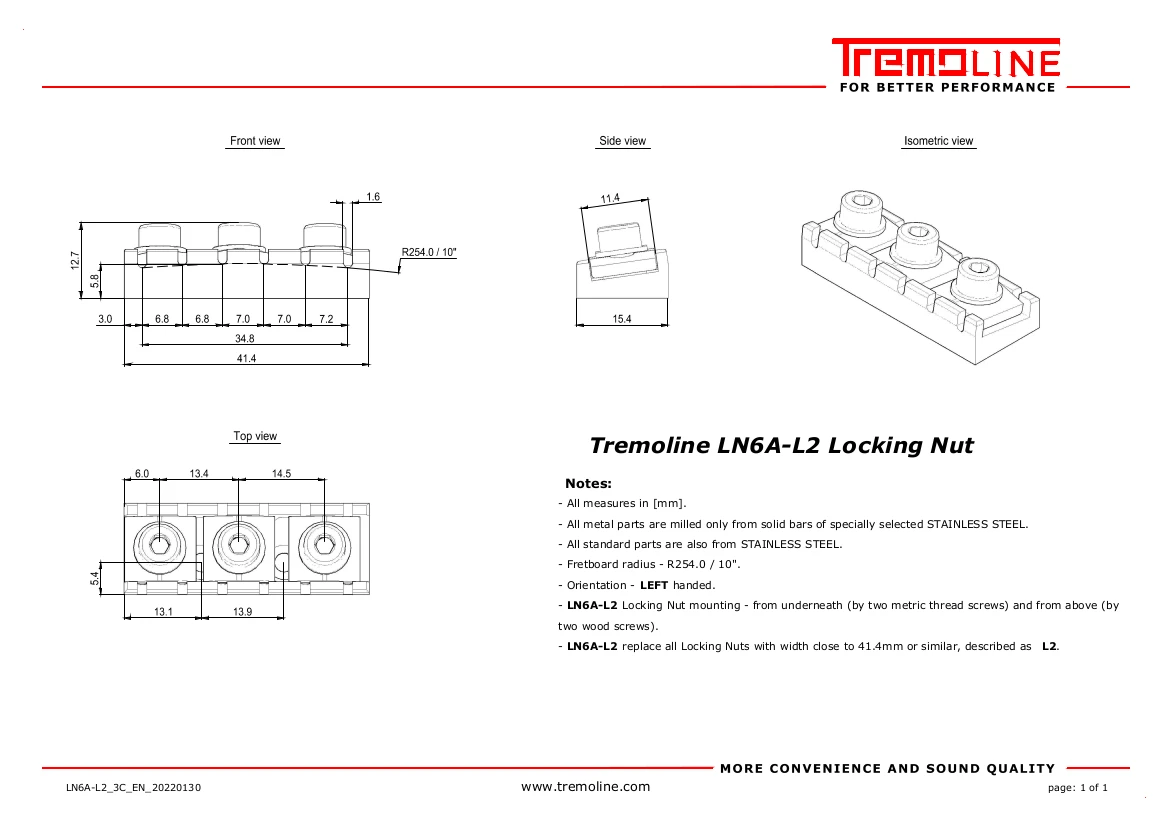

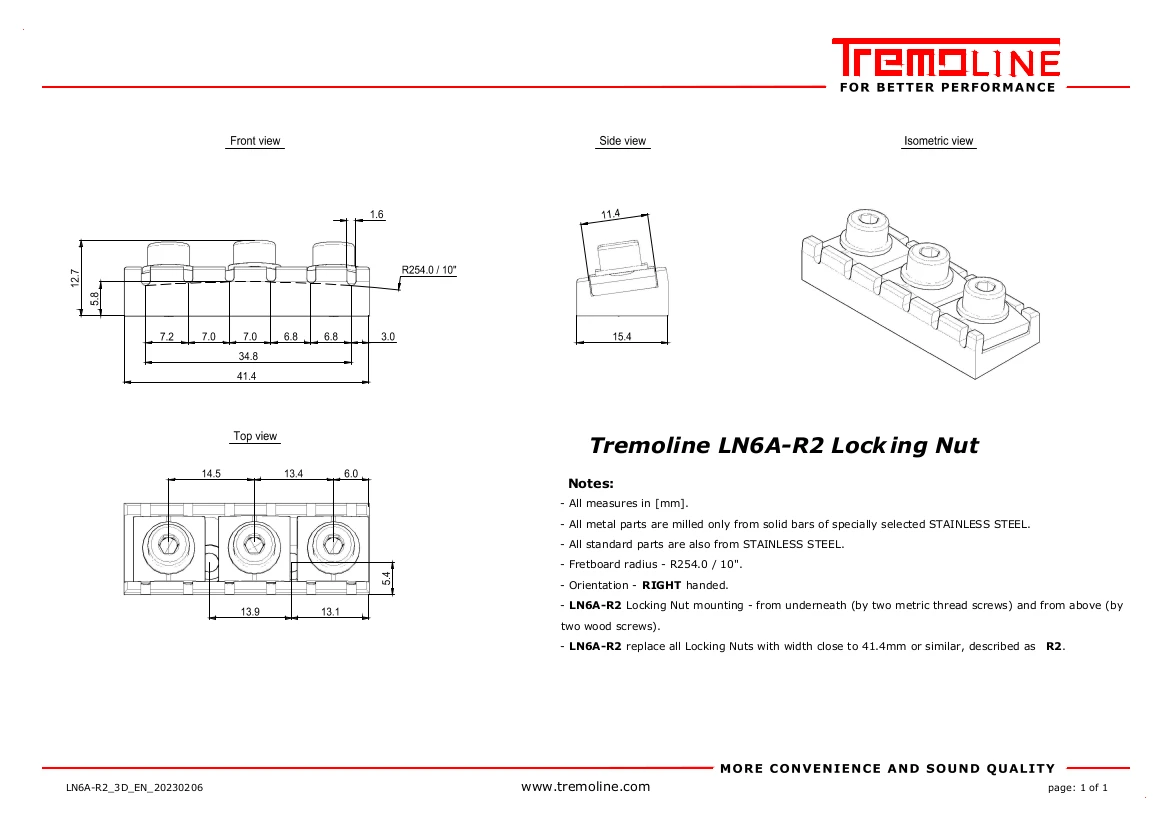

Tremoline LN6A R2 / L2
| Orientation | Right / Left handed |
| Nut Base width | 41.4mm / 1.63" |
| E-E center width | 34.8mm / 1.37" |
| String spacing | 6.4mm / 0.252" |
| Locking Nut radius | 254.0mm / 10.0" |
| Nut Base fixing | from above and underneath |
| Retainer Bar kit | included |
SPECIFICATION

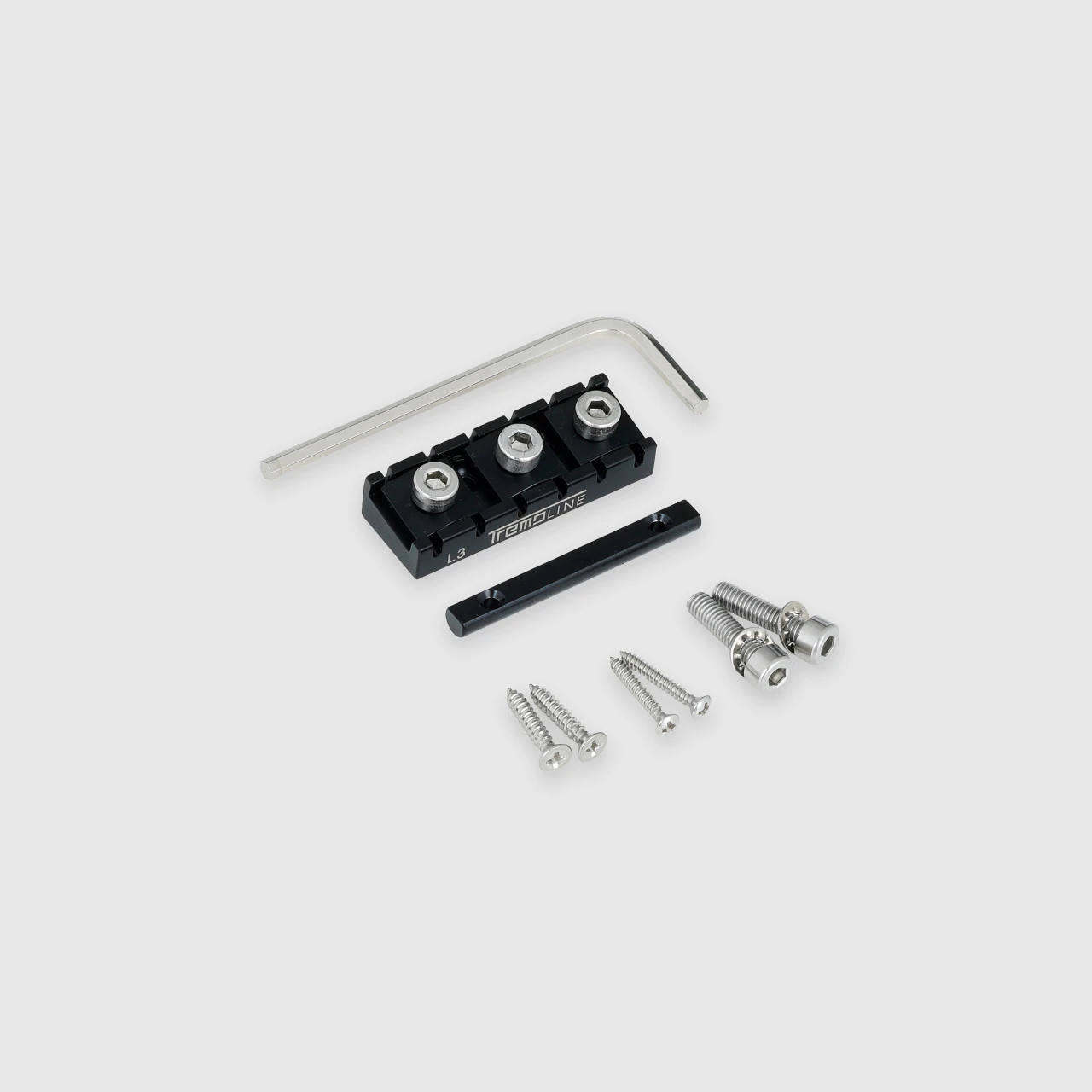

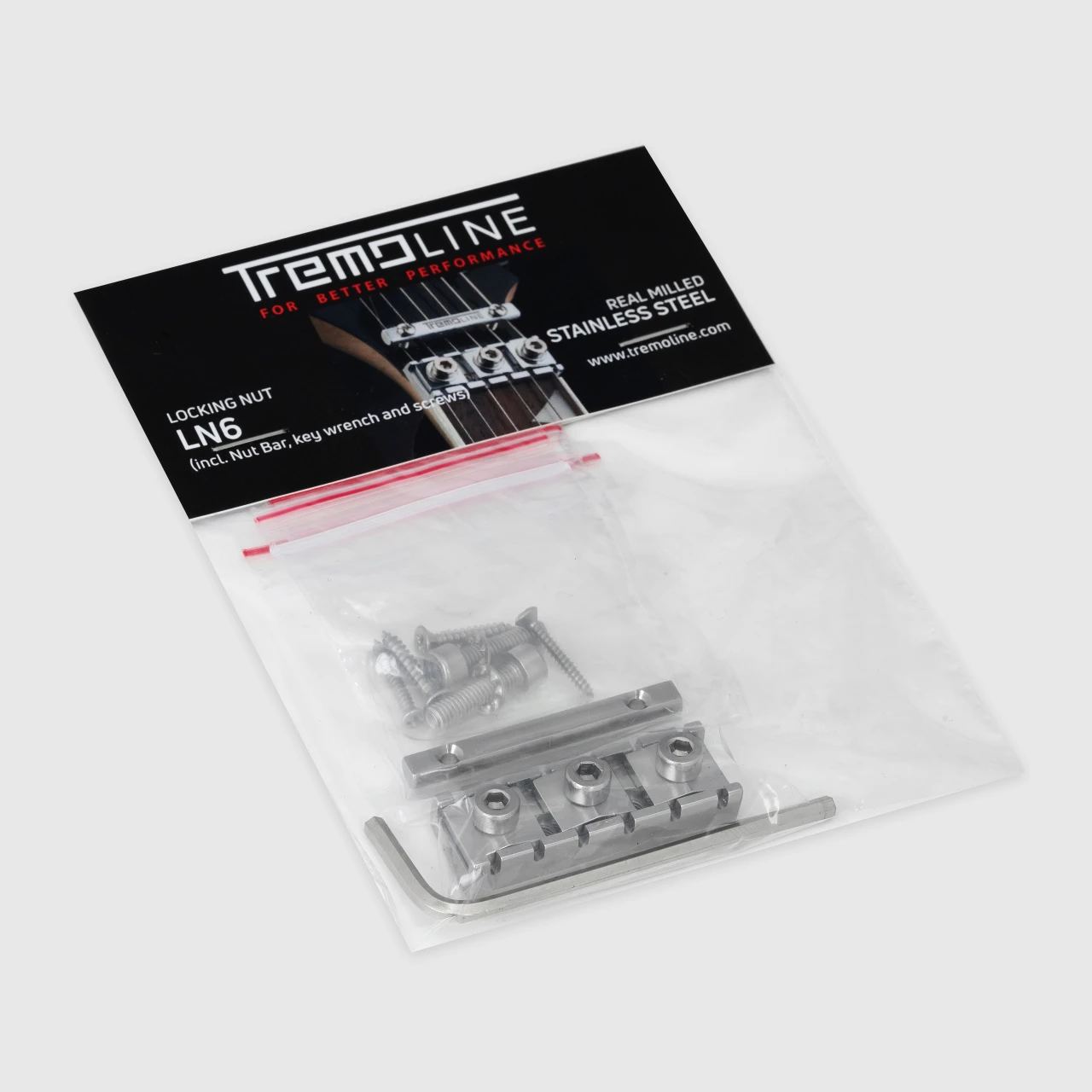

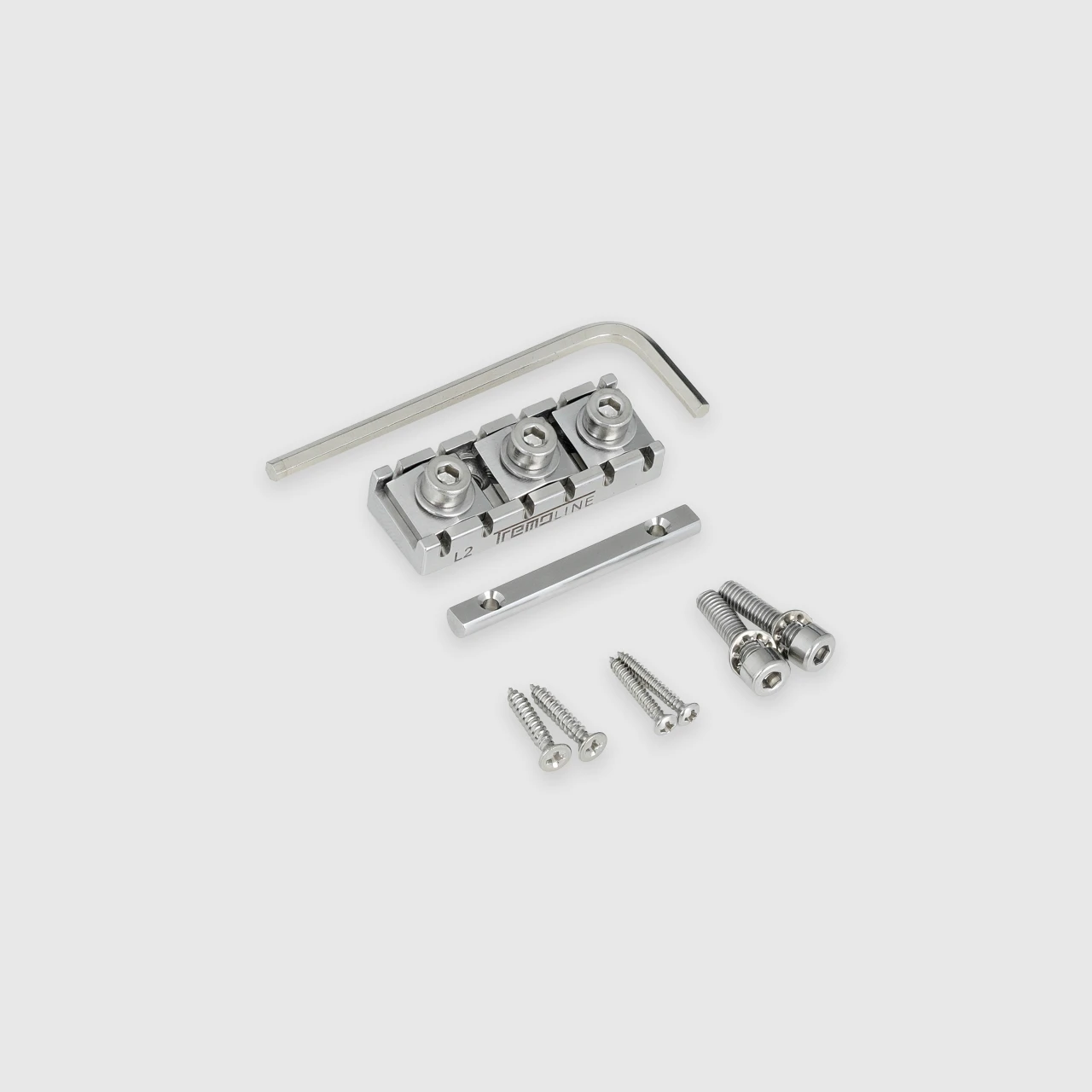

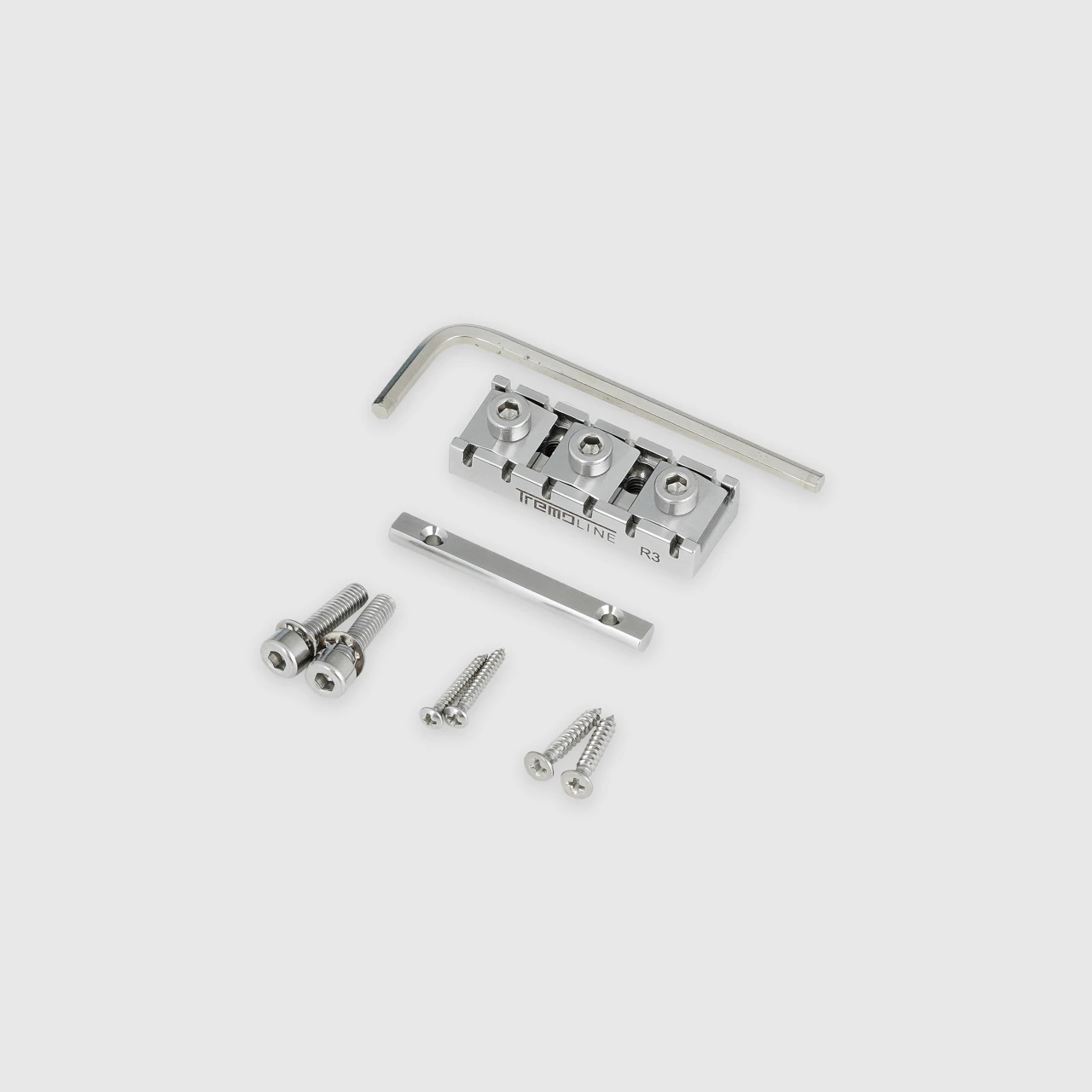

Tremoline LN6A locking nut set includes following parts:
| Locking Nut Set R3 / L3: | 1 |
| Locking Nut Base | 1 |
| Locking Nut Clamp | 3 |
| Clamp Screw | 3 |
| Clamp Washer * | 0 |
| Nut Mounting Screw |
2 |
| Nut Mounting Bolt | 2 |
| Nut Mounting Washer | 2 |
| Nut Bar | 1 |
| Nut Bar Screw | 2 |
| Key wrench 3.0mm | 1 |

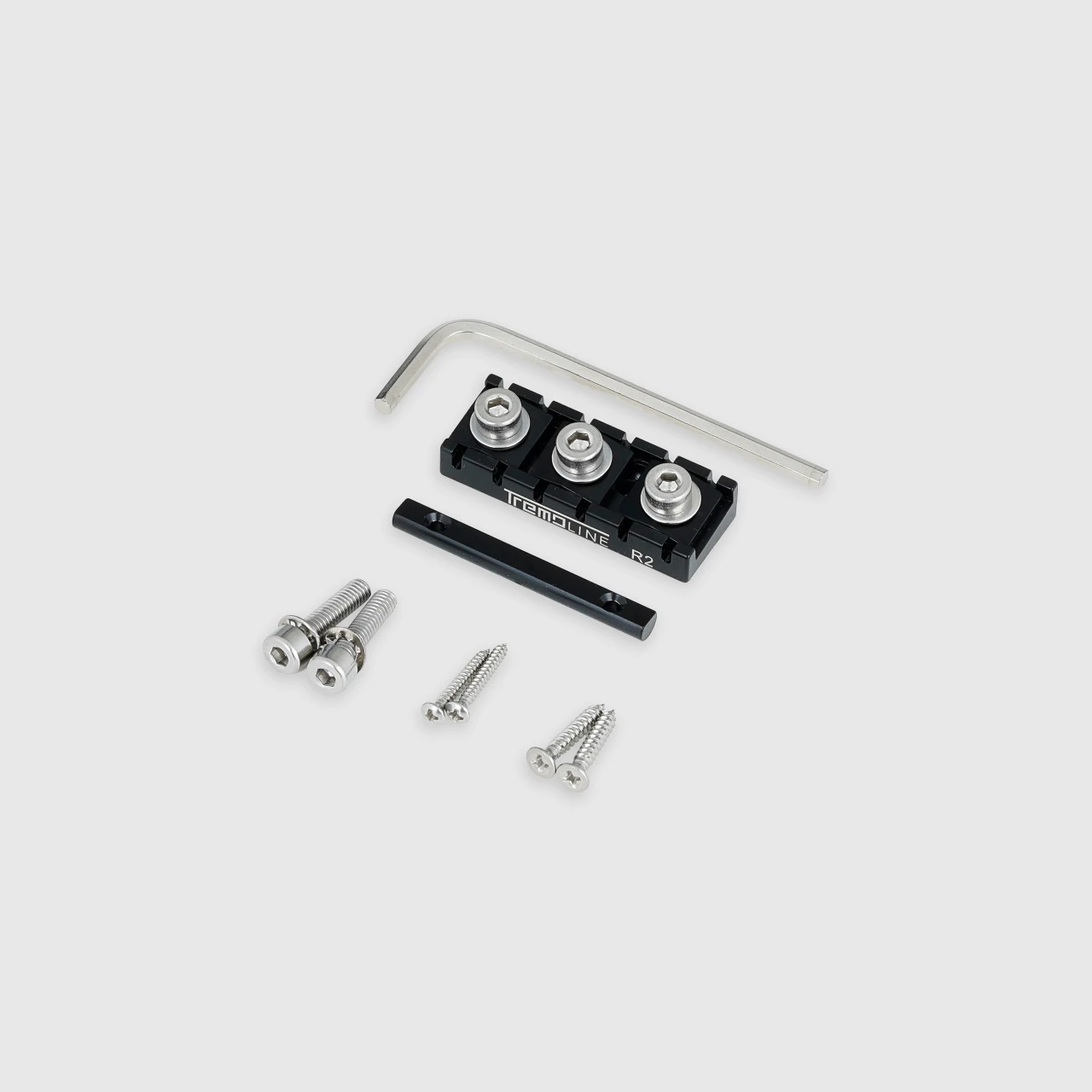

| Locking Nut Set R2 / L2: | 1 |
| Locking Nut Base | 1 |
| Locking Nut Clamp | 3 |
| Clamp Screw | 3 |
| Clamp Washer * | 3 |
| Nut Mounting Screw |
2 |
| Nut Mounting Bolt | 2 |
| Nut Mounting Washer | 2 |
| Nut Bar | 1 |
| Nut Bar Screw | 2 |
| Key wrench 3.0mm | 1 |
OPTIONS and PURCHASING
Tremoline LN6A-R3-SP
| Material | Stainless Steel |
| Orientation: | Right handed |
| Locking Nut type | R3 (42.8mm) |
| Coating Finish color | No Finish coating |
| Surface type | Polished |
Tremoline LN6A-L3-SP
| Material | Stainless Steel |
| Orientation: | Left handed |
| Locking Nut type | L3 (42.8mm) |
| Coating Finish color | No Finish coating |
| Surface type | Polished |
Tremoline LN6A-R2-SP
| Material | Stainless Steel |
| Orientation: | Right handed |
| Locking Nut type | R2 (41.4mm) |
| Coating Finish color | No Finish coating |
| Surface type | Polished |
Tremoline LN6A-L2-SP
| Material | Stainless Steel |
| Orientation: | Left handed |
| Locking Nut type | L2 (41.4mm) |
| Coating Finish color | No Finish coating |
| Surface type | Polished |
PURCHASE through REVERB
FILES - technical information
|
LN6A-R3-3C-EN [pdf] |
Brief preview |
|
LN6A-R2-3C-EN [pdf] |
Brief preview |
|
LN6A-L3-3C-EN [pdf] |
Brief preview |
|
LN6A-L2-3C-EN [pdf] |
Brief preview |
